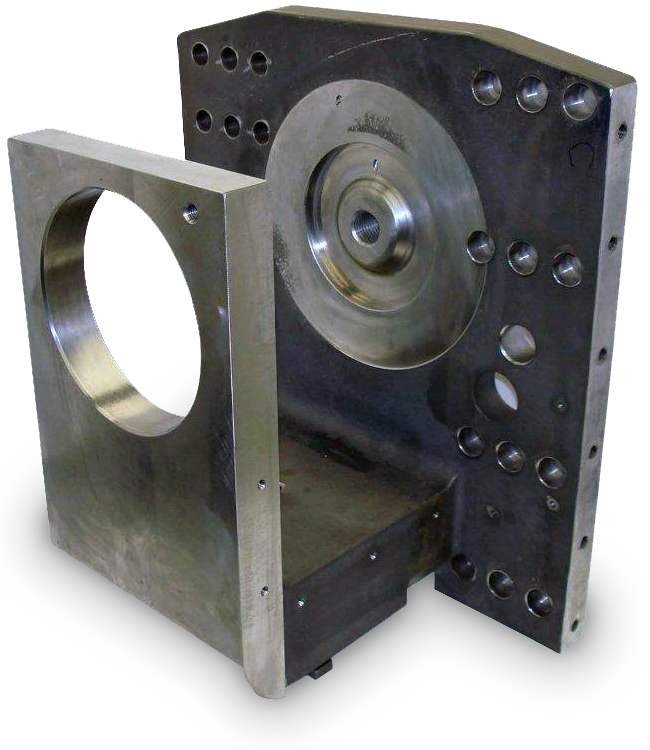

Investment casting is one of the oldest manufacturing processes, dating back thousands of years, in which molten metal is poured into an expendable ceramic mold.
The mold is formed by using a wax pattern - a disposable piece in the shape of the desired part. The pattern is surrounded, or "invested", into ceramic slurry that hardens into the mold. Investment casting is often referred to as "lost-wax casting" because the wax pattern is melted out of the mold after it has been formed. Lost-wax processes are one-to-one (one pattern creates one part), which increases production time and costs relative to other casting processes. However, since the mold is destroyed during the process, parts with complex geometries and intricate details can be created.
Investment casting can make use of most metals, most commonly using carbon steels, cobalt alloys, nickel alloys, aluminum alloys, bronze alloys, magnesium alloys, cast iron, stainless steel, duplex stainless steel and tool steel.
This process is beneficial for casting metals with high melting temperatures that cannot be molded in plaster or metal. Parts that are typically made by investment casting include those with complex geometry such as turbine blades or firearm components. High temperature applications are also common, which includes parts for the automotive, aircraft, and military industries.
Investment casting requires the use of an aluminum die, wax, ceramic slurry, furnace, molten metal, and any machines needed for finishing such as sand blasting, cutting, or grinding.
The process steps include the following:

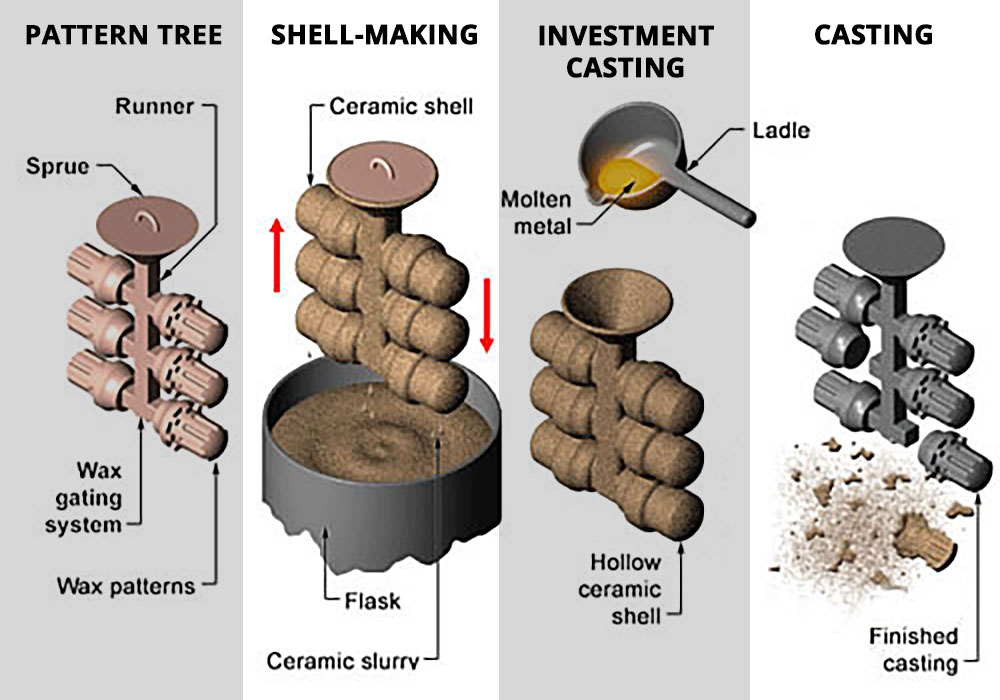

- Pattern creation- The wax patterns are typically injection molded into an aluminum die and are formed as one piece. Ceramic/soluble cores may be used to form any internal features on the pattern. Several of these patterns are attached to a central wax gating system (sprue, runners, and risers) to form a tree-like assembly. The gating system forms the channels through which the molten metal will flow to the mold cavity.
- Mold creation- This "pattern tree" is dipped into a slurry of fine-fused, silica, ceramic particles, coated with more coarse particles, and then dried to form a ceramic shell around the patterns and gating system. This process is repeated until the shell is thick enough to withstand the molten metal it will encounter. The shell is then placed into an autoclave and the wax is melted out leaving a hollow ceramic shell that acts as a one-piece mold, hence the name "lost wax" casting.
- Pouring- The mold is preheated in a furnace to approximately 1800°F – 2000°F and the molten metal is poured from a ladle into the gating system of the mold, filling the mold cavity. Pouring is typically achieved manually under the force of gravity, but other methods such as vacuum or pressure are sometimes used.
- Cooling- After the mold has been filled, the molten metal is allowed to cool and solidify into the shape of the final casting. Cooling time depends on the thickness of the part, thickness of the mold, and the material used.
- Casting removal- After the molten metal has cooled, the mold can be broken and the casting removed. The ceramic mold is typically removed using pneumatic vibration water jets, but several other methods also exist. Once removed, the parts are separated from the gating system by either sawing or cold breaking (using liquid nitrogen) in some cases.
- Finishing- Often times, finishing operations such as grinding or sandblasting are used to smooth the part at the gates. Heat treatment is also sometimes used to harden the final part.
- Value added operations- turnkey machining, painting, plating.
